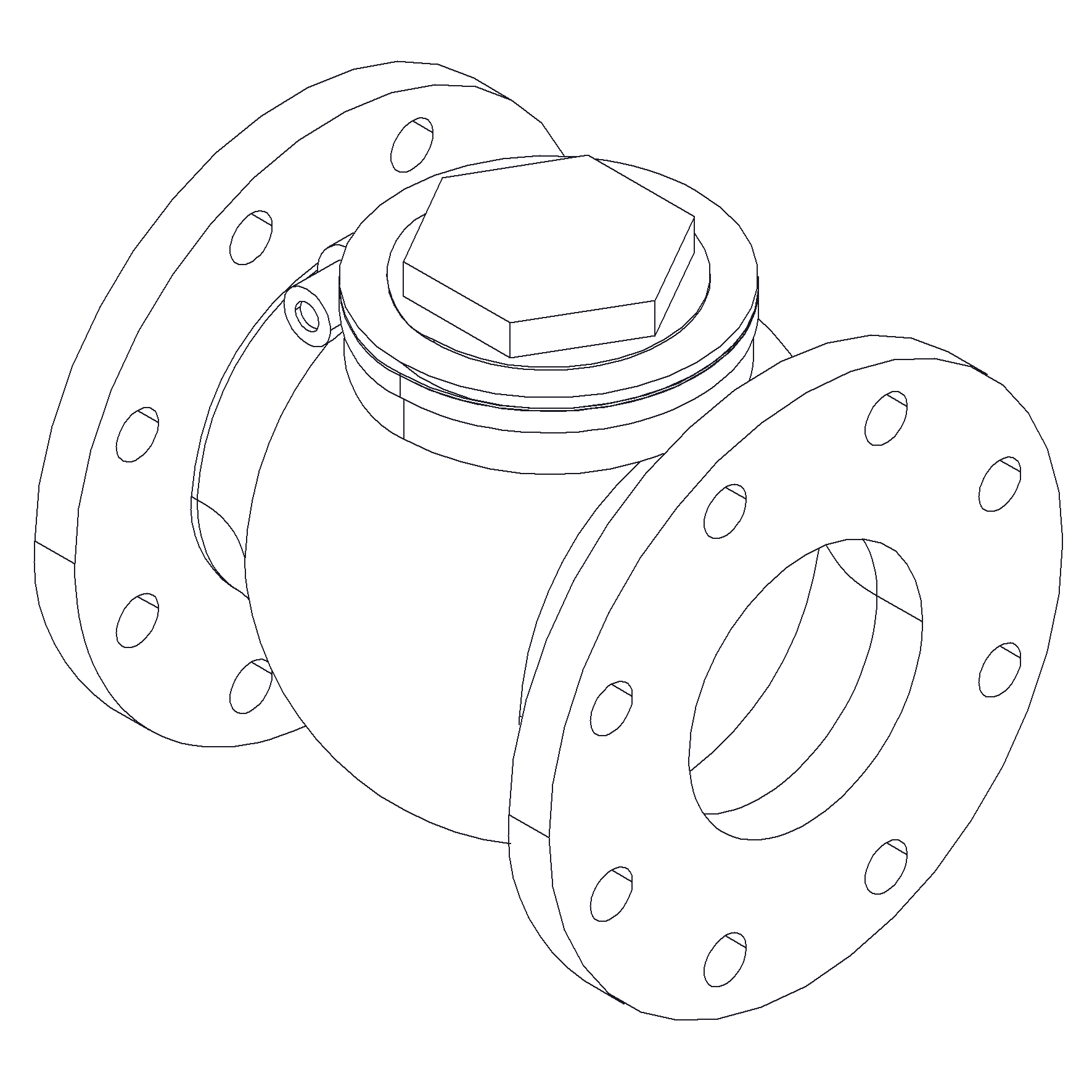

Swing Check Valve DN25 PN16
Details
RG5 body swing check valve with metal sealing. Screwed cover. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 304622 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| End Standard | EN 1092-3 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 25 |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | 60-00000031 |
| Category | Valve |
| Max temperature | +180°C |

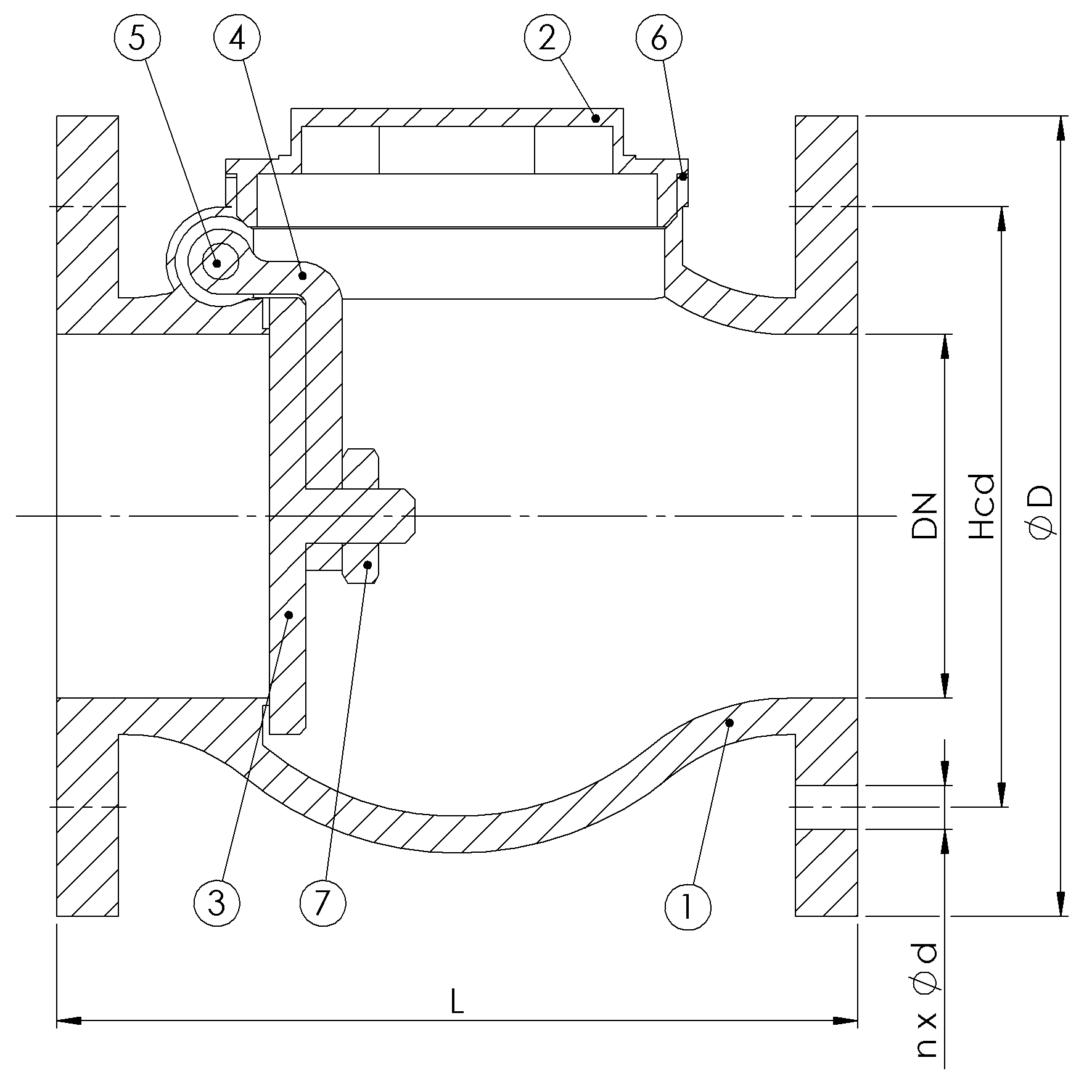

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Cap | Brass | CW 614N |
| 3 | Disc | Brass | CW 614N |
| 4 | Swing arm | Brass | CW 614N |
| 5 | Pivot | Brass | CW 614N |
| 6 | Gasket | Fiber | |
| 7 | Disc nut | Brass | CW 614N |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg |
|---|---|---|---|---|---|---|
| 25 | 16 | 4x14 | 85 | 115 | 99 | 2.5 |
