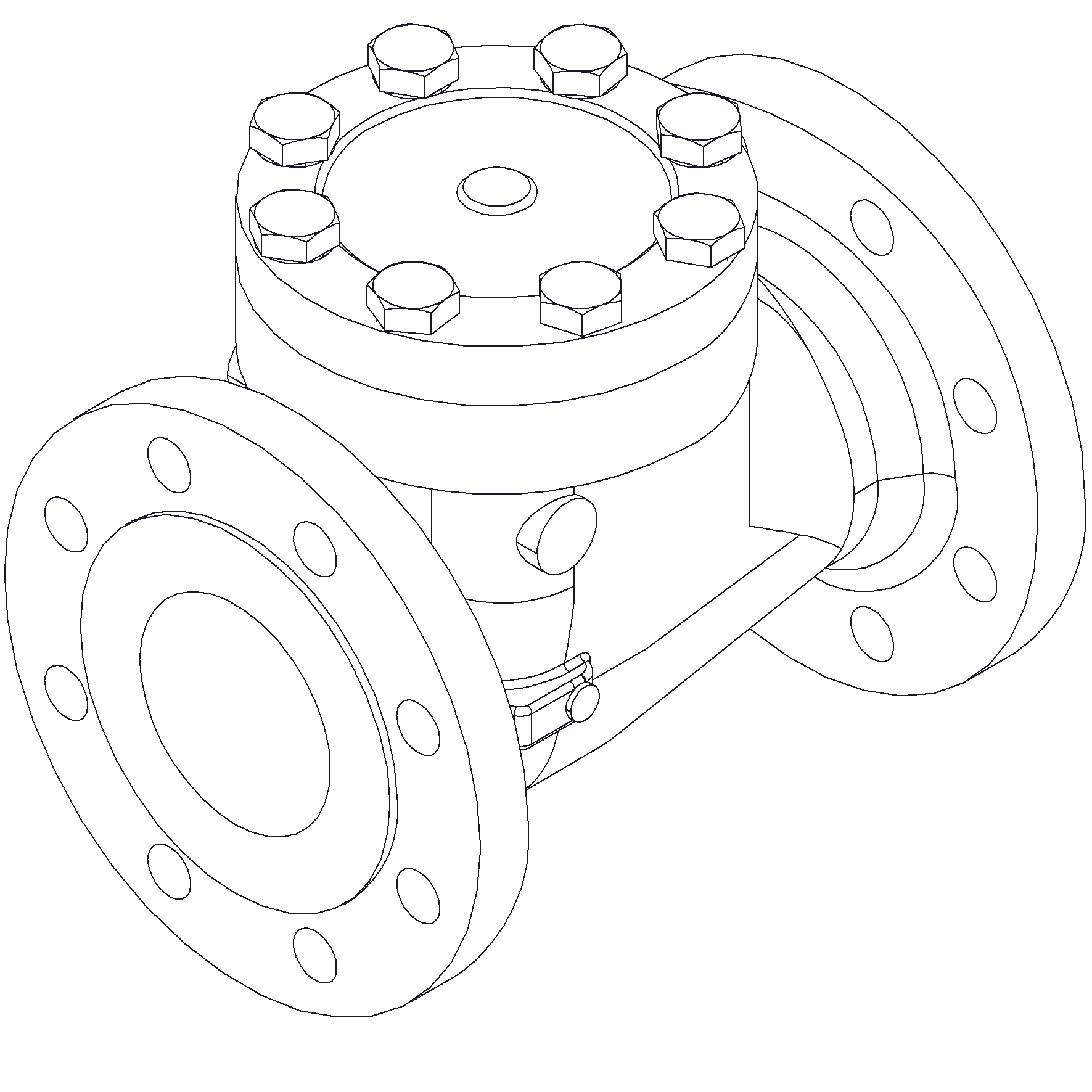

Swing check Valve DN32 PN16

Item No.

60-00000356

Details

Nodular Cast Iron body, full bore swing check valve with NBR soft sealing. Raised face flanges.

More Information

More Information
Price View	Price Range
Product Group	370202
Material Body	Nodular Cast Iron, GGG40.3
Min temperature	-10°C
Remark	Connection: PN16
Throughput Direction	Straight
Face To Face Standard	EN 558, series 48
End Standard	EN 1092-2
Design Code	DIN 3232
Standard	DIN
Application	Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size	32
Material Seat	NBR
Material Disc	Bronze
Pressure Rating	PN16
End Type	Flanged
Sub Category	CHECK
Item Number	60-00000356
Category	Valve
Execution	Full Bore
Max temperature	+120°C

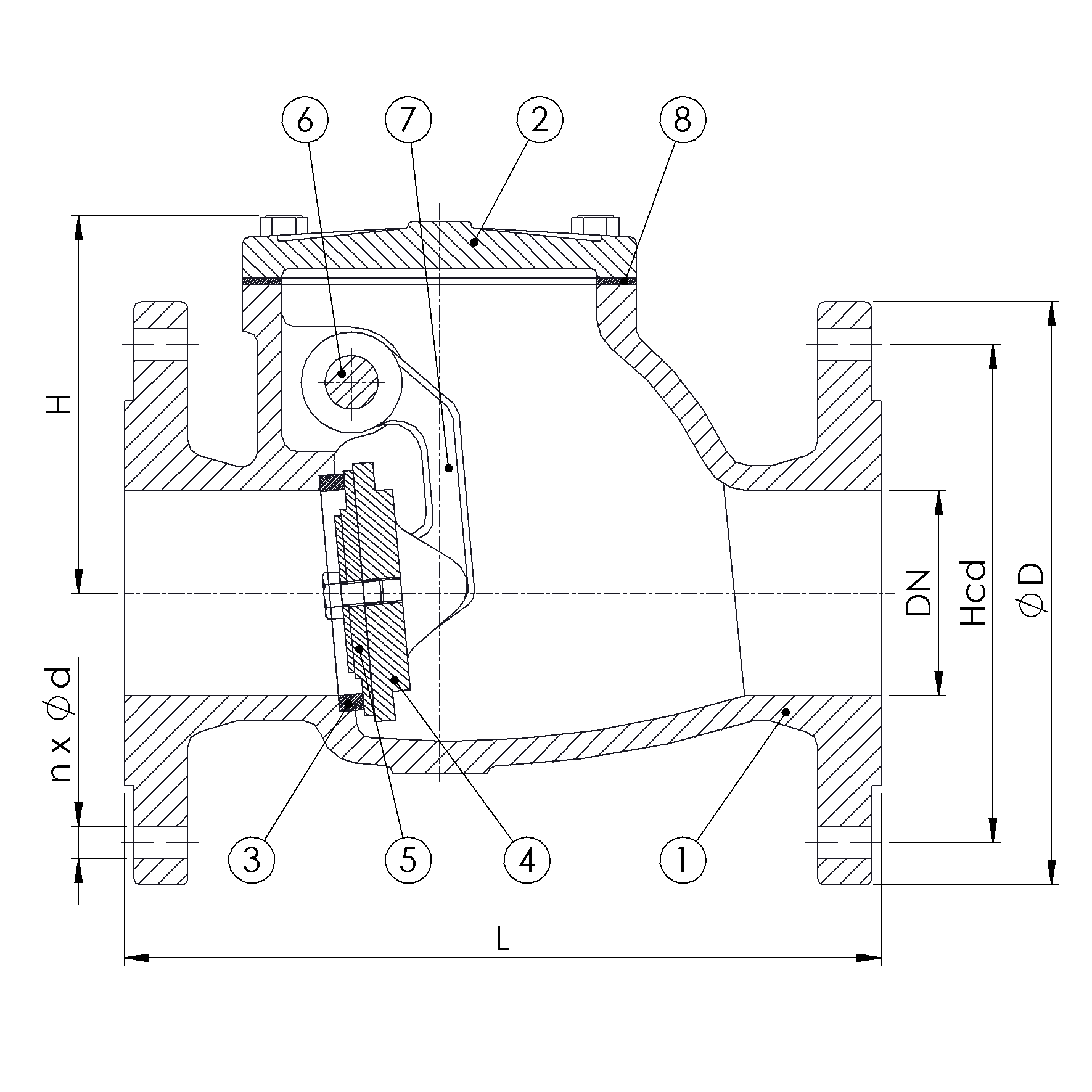

No	Part	Material	Code
1	Body	Nodular Cast Iron	GGG40.3
2	Bonnet	Nodular Cast Iron	GGG40.3
3	Body seat	Bronze	CC 491K
4	Disc	Nodular Cast Iron	GGG40.3
5	Disc sealing	NBR
6	Stem	Brass	CW 614N
7	Hinge arm	Nodular Cast Iron	GGG40.3
8	Bonnet gasket	Asbestos Free

DN	Pressure Rating Id	nxdd	Hcd	Ø D	L	Kg	H
32	16	4x18	100	140	180	6	95
