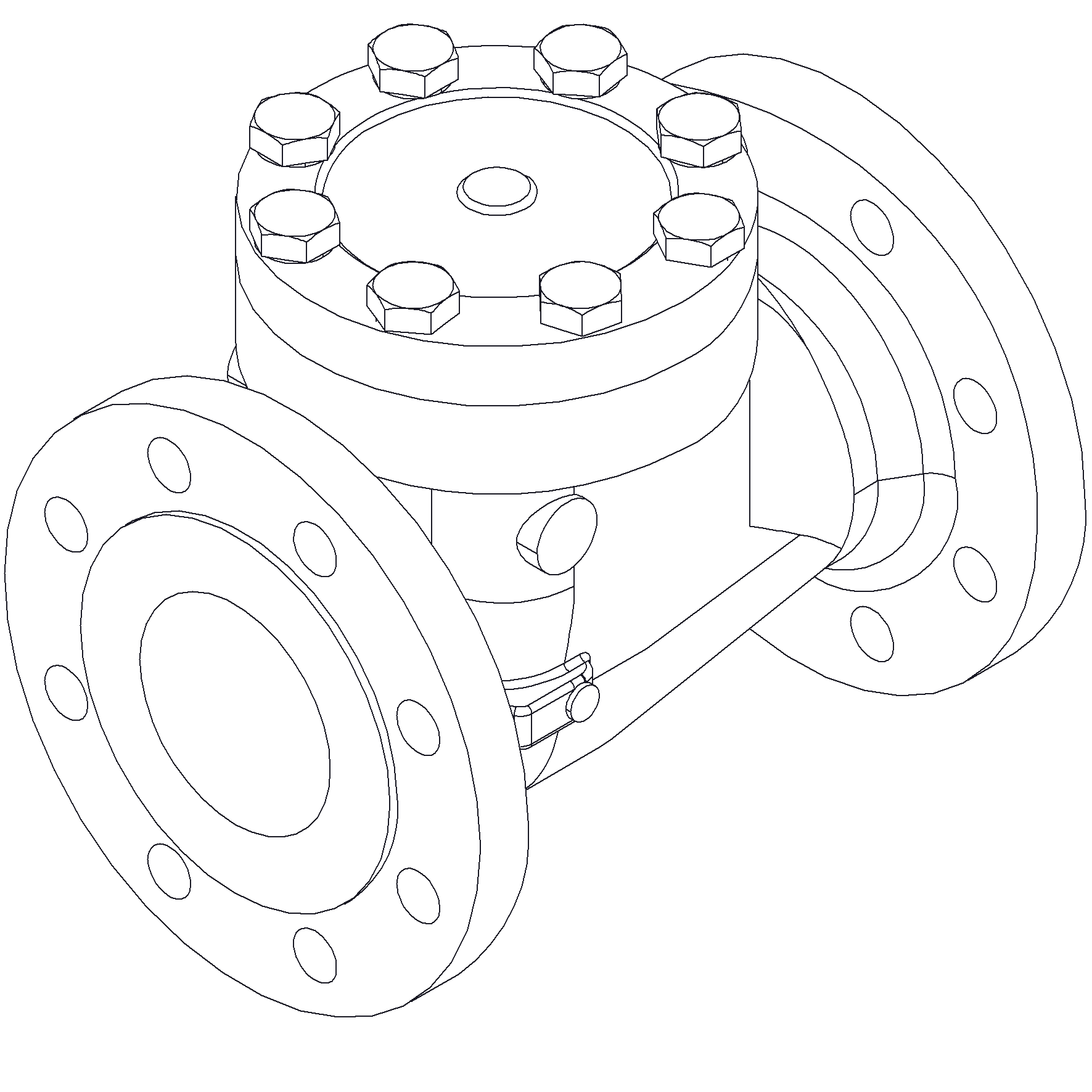

Swing check valve DN40 PN16
Details
Cast Iron body, full bore swing check valve. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 370252 |
| Material Body | Cast Iron |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 48 |
| End Standard | EN 1092-2 |
| Design Code | DIN 3232 |
| Standard | DIN |
| Application | Air, Cargo oil, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Sea water, Water |
| Size | 40 |
| Material Seat | Bronze |
| Material Disc | Nodular Cast Iron, GGG40.3 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | 60-00000529 |
| Category | Valve |
| Execution | Full Bore |
| Max temperature | +120°C |

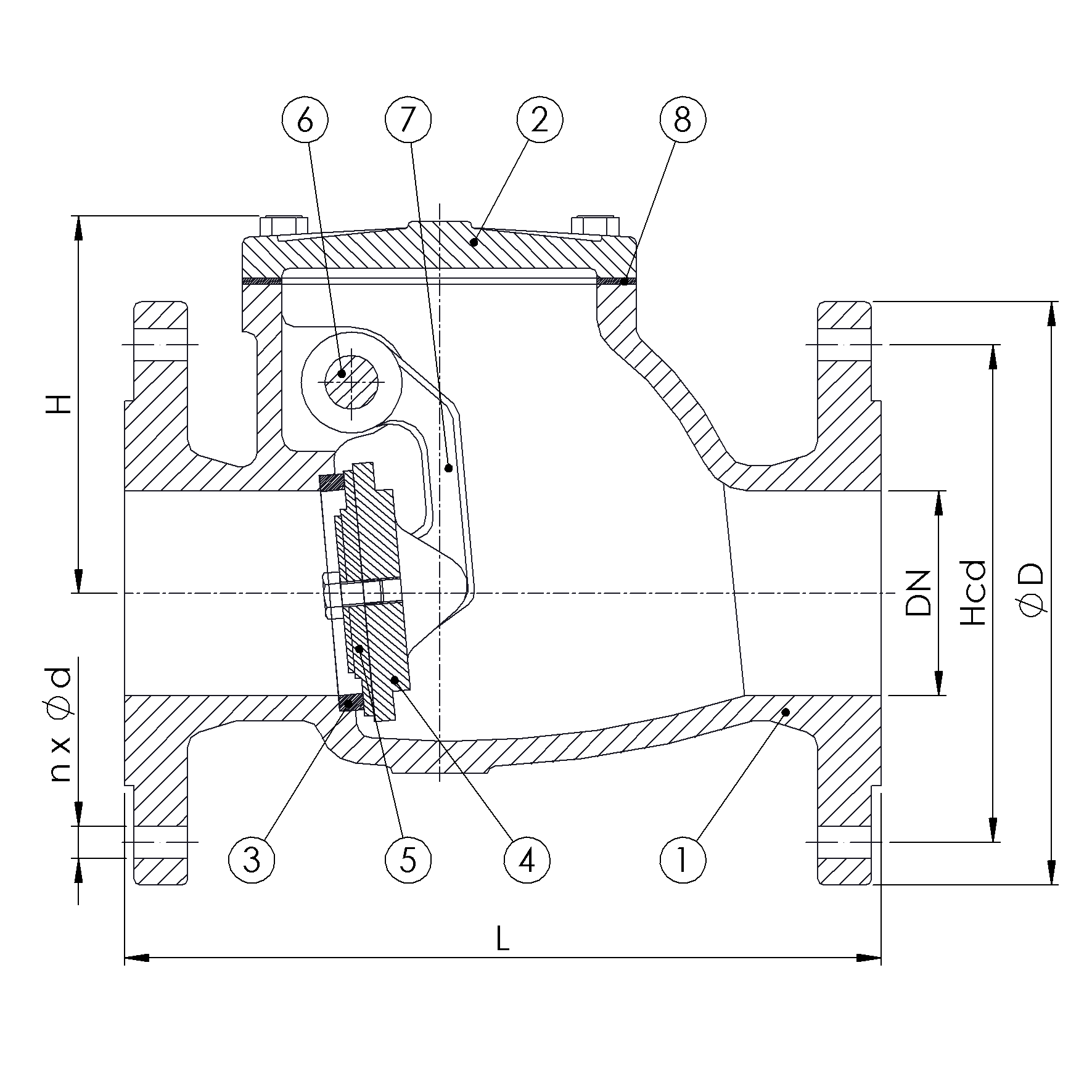

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Body seat | Bronze | CC 491K |
| 4 | Disc | Nodular Cast Iron | GGG40.3 |
| 5 | Disc sealing | Bronze | |
| 6 | Stem | Brass | CW 614N |
| 7 | Hinge arm | Nodular Cast Iron | GGG40.3 |
| 8 | Bonnet gasket | Asbestos Free |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H |
|---|---|---|---|---|---|---|---|
| 40 | 16 | 4x18 | 110 | 150 | 180 | 8 | 100 |
