Swing Check Valve DN65 PN16
Details

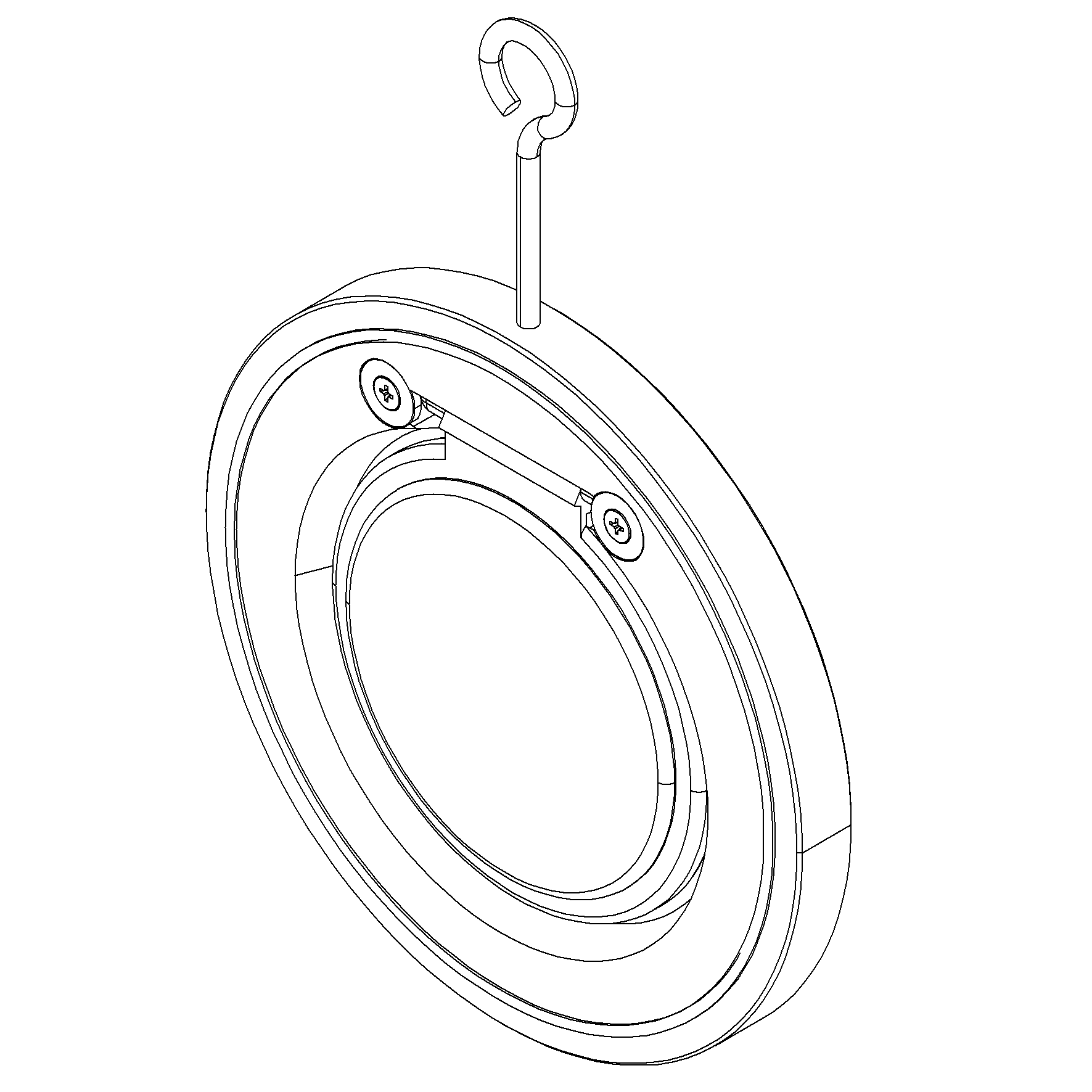

Stainless Steel body, NBR sealing swing check valve with Stainless Steel disc.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 305092 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -15°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 65 |
| Material Seat | NBR |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | 60-00000089 |
| Category | Valve |
| Max temperature | +80°C |
Partslist and details

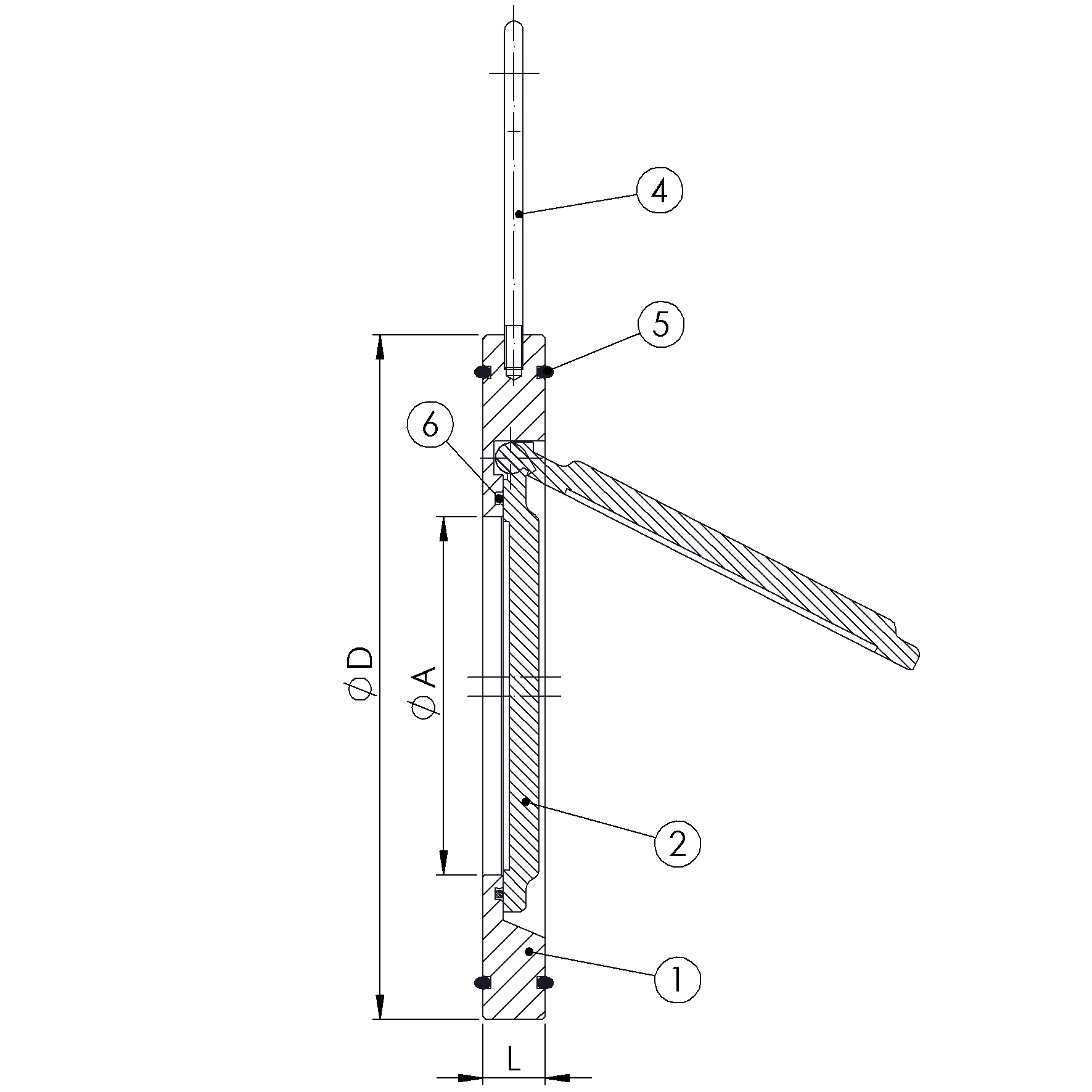

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8M |
| 2 | Disc | Stainless Steel | CF8M |
| 3 | Bolt | Stainless Steel | SS 316 |
| 4 | Eye bolt | Stainless Steel | SS 316 |
| 5 | O-ring | NBR | |
| 6 | O-ring | NBR |
DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | Ø A |
|---|---|---|---|---|---|
| 65 | 16 | 129 | 14 | 1.2 | 40 |
