Swing Check Valve DN80 PN16
Details
Aluminium Bronze body, EPDM sealing swing check valve with Aluminium Bronze disc.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 305072 |
| Material Body | Aluminium Bronze |
| Min temperature | -20°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 80 |
| Material Seat | EPDM |
| Material Disc | Aluminium Bronze |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | M82017 |
| Category | Valve |
| Max temperature | +100°C |
Partslist and details

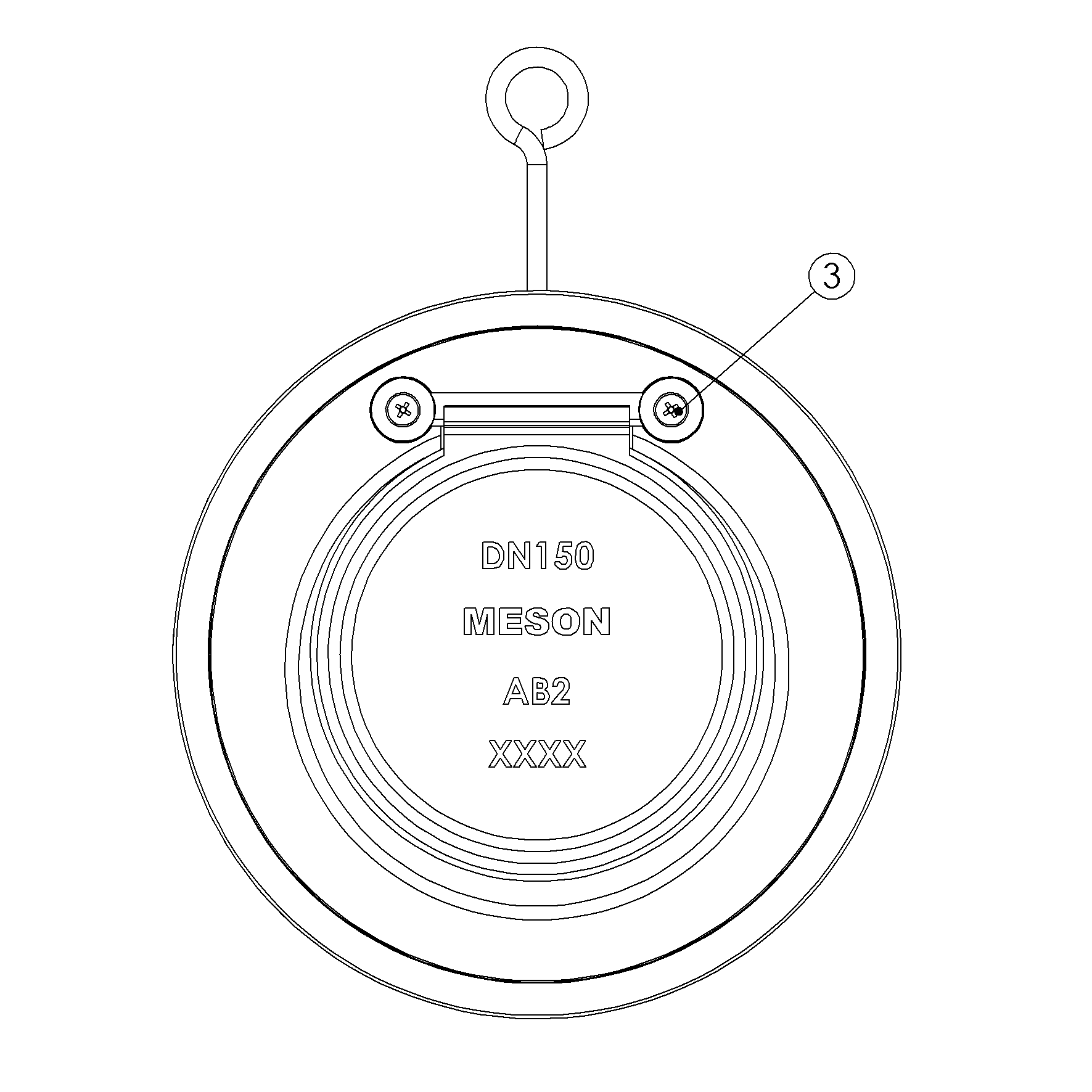

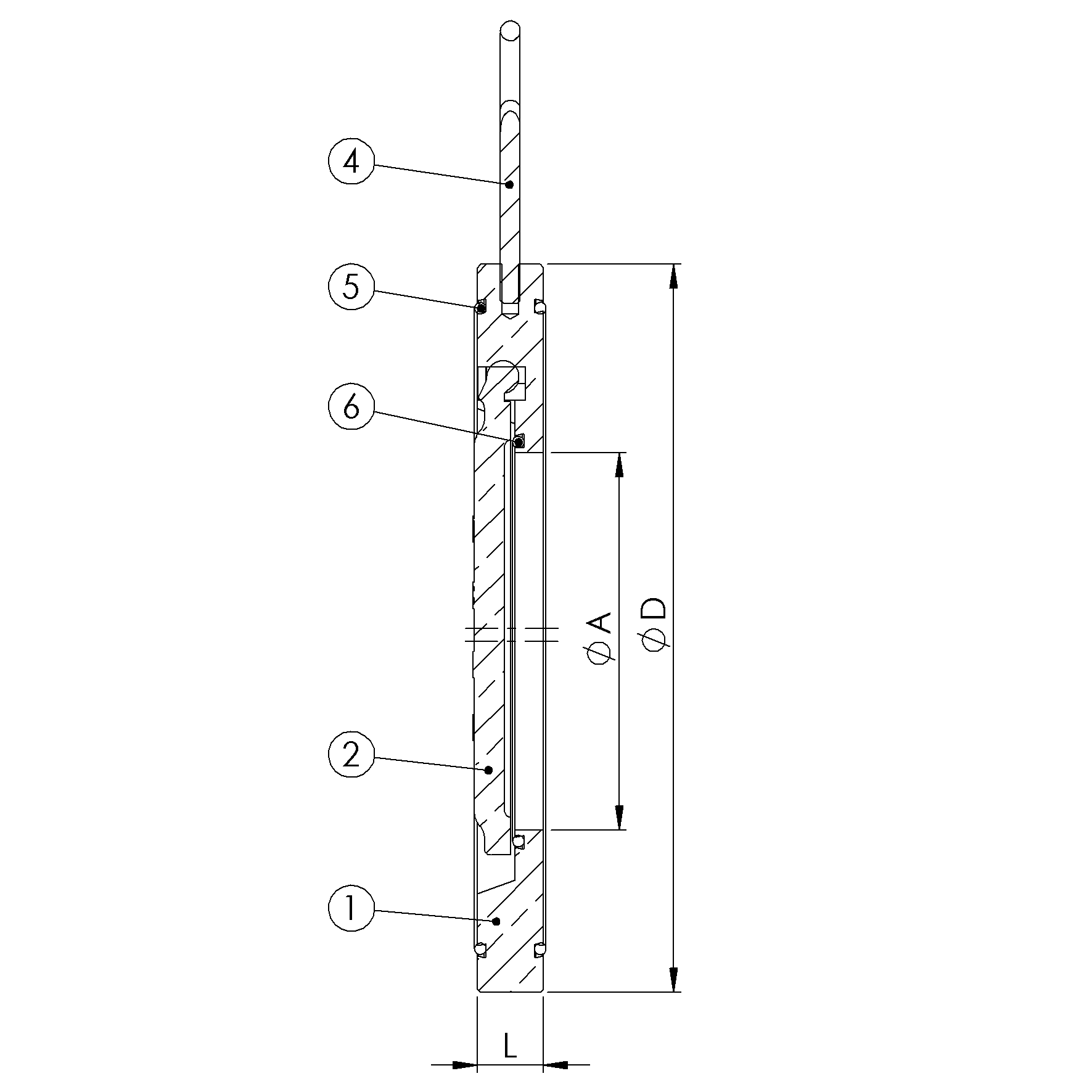

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Aluminium Bronze | |
| 2 | Disc | Aluminium Bronze | |
| 3 | Bolt | Stainless Steel | 1.4436 |
| 4 | Eye bolt | 8.8 FZB | |
| 5 | O-ring | EPDM | |
| 6 | O-ring | EPDM |
DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | Ø A |
|---|---|---|---|---|---|
| 80 | 16 | 144 | 14 | 1.5 | 54 |
